THREE PHASE STEPPER MOTOR DRIVER HB3922

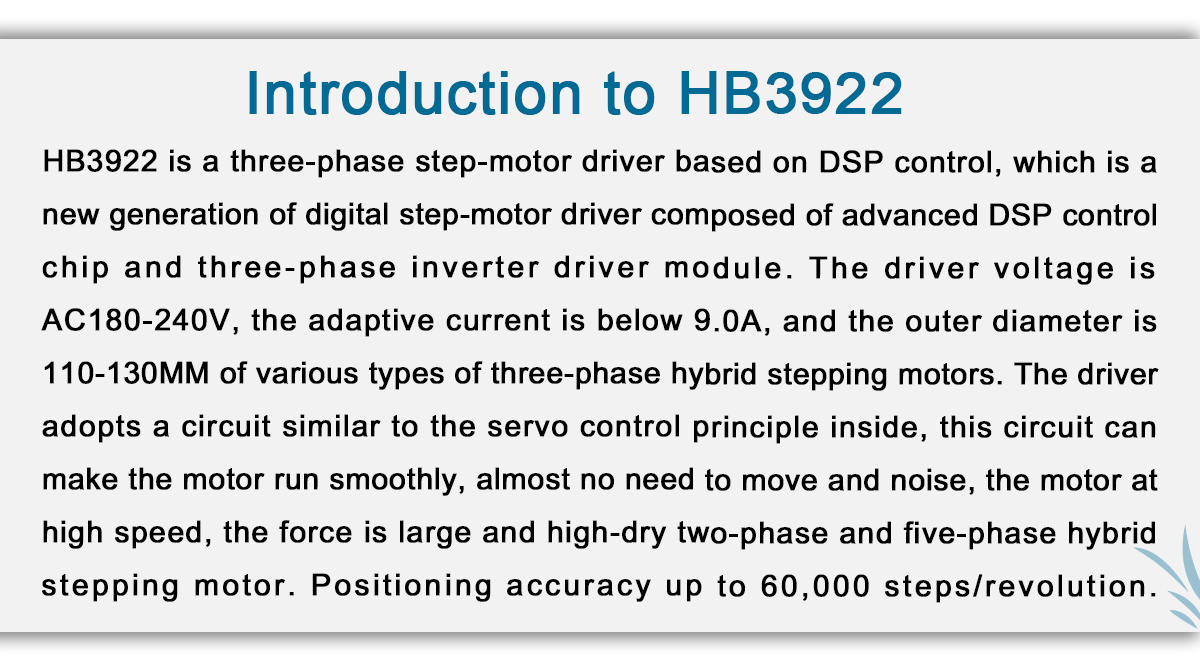

HB3922 is a three-phase stepper motor driver based on DSP control, which is a new generation of digital step-motor driver composed of advanced DSP control chip and three-phase inverter driver module.The driver voltage is AC 180-240V, the adaptive current is below 9.0A, and the outer diameter is 110-130mm of various types of three-phase hybrid stepping motors. The driveradopts a circuit similar to the servo control principle inside, this circuit canmake the motor run smoothly, almost no need to move and noise, the motor athigh speed, the force is large and high-dry two-phase and five-phase hybridstepping motor. Positioning accuracy up to 60,000 steps/revolution.

Product Accessories:

Single drive

Retail price

$ 61

Market price

$ 58.61

Consult Contact

Quantity

库存剩余

10000000

加入购物车

立即购买

PRODUCT DETAILS

Key words:

THREE PHASE STEPPER MOTOR DRIVER HB3922

BLDC Motor Driver ZM-BL2205F for Brushless Dc Motor

THREE PHASE HYBRID STEPPER MOTOR DRIVER HB3722S2 based on DSP control
